PLL photos with the tiny AD9835 tracks.
Note the laser was on draft 300dpi hence the slight dotty nature of the tracks I have done this as I wanted to test out the process.
Tinning will cover these. This was after just 15 minutes in tin solution.

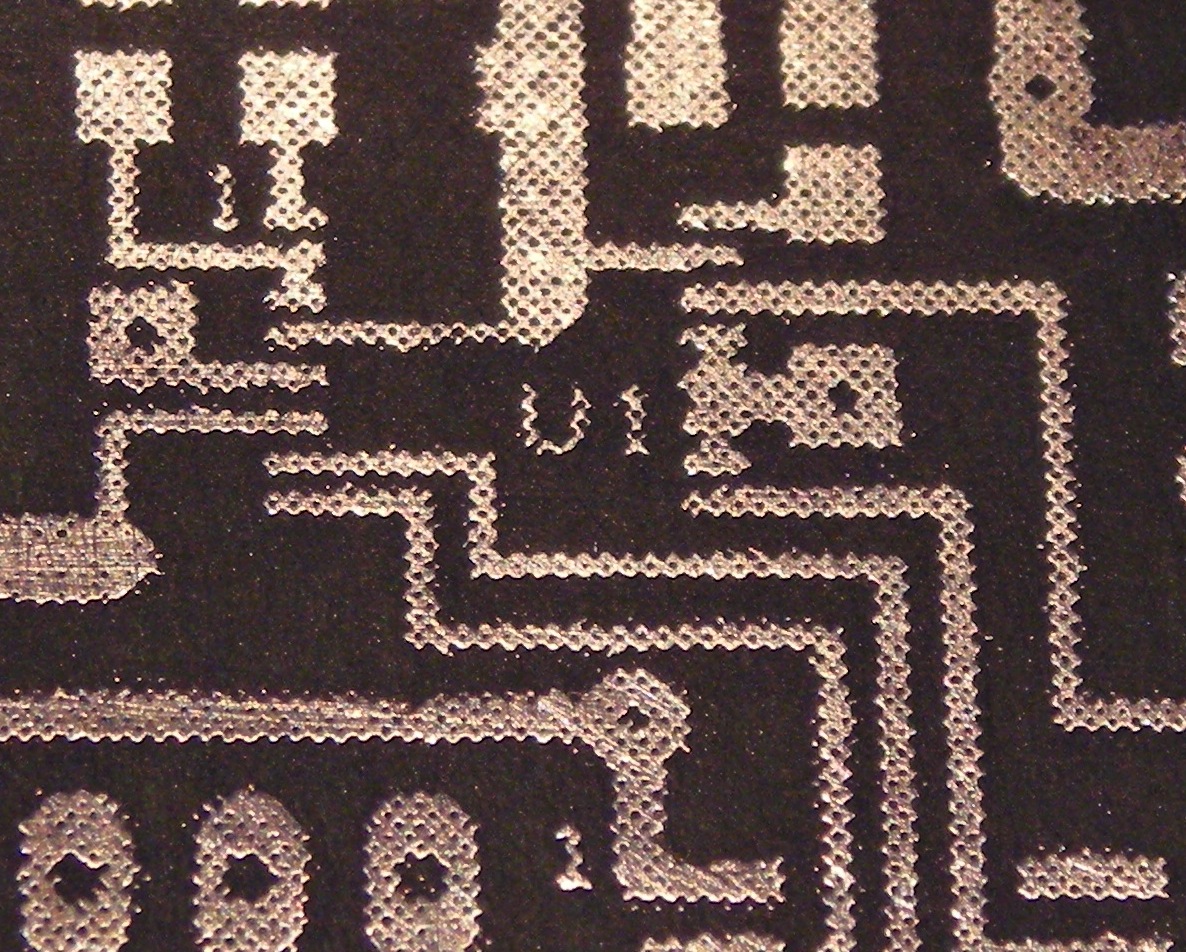

Just to see how low you can go...this is what you get at 150 dpi printing:
I might b tempted to chase a blob of solder about these pads/tracks
